Gravure Reverse Printing Ink

Product Introduction

---

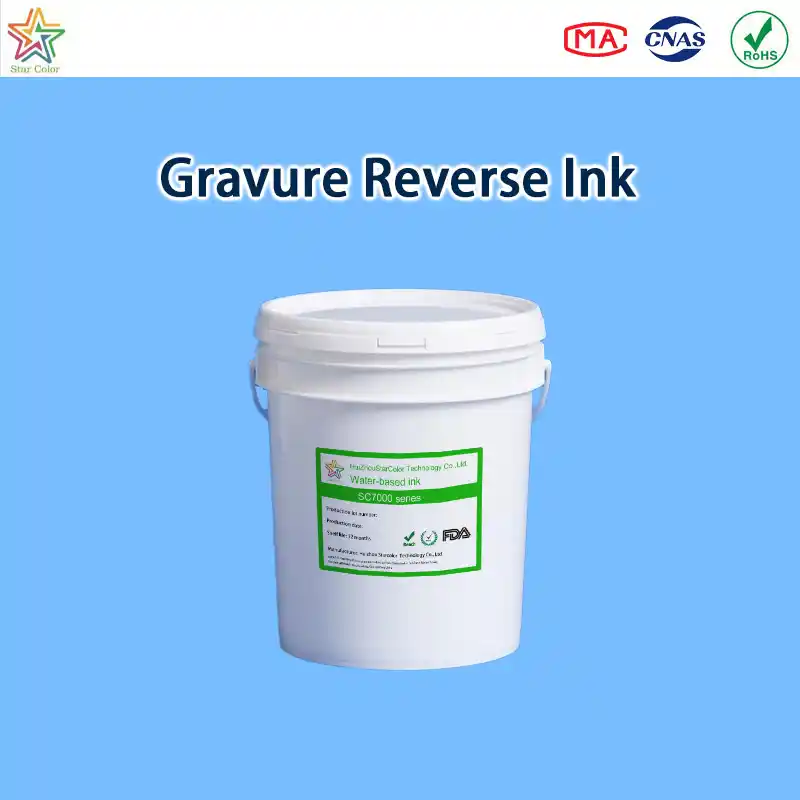

Starcolor ®  Gravure Reverse Inks is a water-based gravure ink designed for high-quality composite flexible packaging printing, mainly suitable for the inner printing process of transparent or semi transparent films such as PE, PP, BOPP, PET, etc. This series of inks has excellent adhesion, composite resistance, fast drying, and high-definition printing effects, and is widely used in composite packaging printing in industries such as food, daily chemical, and pharmaceutical.


Product Features

✅ ‌Excellent Adhesion‌: Offers good wettability and adhesion to various film materials, preventing ink detachment issues.
✅ ‌High Gloss & Clarity‌: Delivers vibrant colors and rich gradients, ideal for high-precision printing patterns.
✅ ‌Superior Composite Compatibility‌: Compatible with dry lamination, water-based adhesive lamination, and other processes, ensuring strong bonding without delamination.
✅ ‌Fast-Drying Formula‌: Enables high-speed printing, reduces energy consumption, and minimizes sticking.
✅ ‌Eco-Friendly & Low Odor‌: Complies with environmental regulations, suitable for odor-sensitive packaging applications.
✅ ‌Excellent Doctor Blade Adaptability‌: Reduces blade lines and ink misting, ensuring stable printing performance.


Applicable Scope‌

Suitable for printing on the following materials and use as composite inner layer:
✅ ‌BOPP‌ (Biaxially Oriented Polypropylene)
✅ ‌PET‌ (Polyester Film)
✅ ‌PP‌ (Polypropylene Film)
✅ ‌CPP‌, ‌PE‌ (requires treatment)

Commonly used in:
✅ ‌Flexible food packaging‌ (e.g., snacks, candies, instant foods)
✅ ‌Daily chemical packaging‌ (e.g., laundry detergent, shampoo)
✅ ‌Medical outer packaging‌
✅ ‌Freezer bags‌, ‌liquid pouches‌, and similar applications.



Technical Parameters‌

‌Item‌	‌Specification‌
Type	Water-based Ink
Printing Method	Gravure Reverse Printing
‌Color‌	Customizable (CMYK / Spot Colors)
‌Viscosity (25°C)‌	8-10s (Din 4# cup)
PH	7.5-9.0
‌Solid Content‌	30%-40%
‌Drying Method‌	Water evaporation or hot air drying
‌Printing Speed‌	150-200 m/min (recommended)
‌Thinner‌	Water/ethanol/customized mixed solvent
‌Storage Conditions‌	Store in a sealed container away from light at 5-35°C
Packages	20kg/drum
Shelf Life	12 months



Typical Applications

Usage Instructions

• ‌Pre-Press Preparation‌:
  Ensure material surface tension ≥38 dyn/cm to guarantee adhesion.

• ‌Dilution Ratio‌:
  Adjust according to printing speed and seasonal conditions. A 5%-15% thinning agent addition is recommended.

• ‌Viscosity Control‌:
  Maintain viscosity within the optimal range to avoid over-dilution or excessive thickness, which may affect print quality.

• ‌Drying Settings‌:
  Optimize hot air temperature (recommended 50~65°C) to ensure thorough drying and prevent misregistration.

• ‌Storage & Usage‌:
  Stir thoroughly before use. Conduct small-batch test prints for performance verification if left unused for extended periods.
