In water-based ink printing, poor ink overlapping rate is one of the most common factors causing uneven color density, mottled tones, pattern voids and inconsistent batch quality. Unlike solvent-based inks, water-based inks are more sensitive to viscosity, transfer volume, printing parameters and equipment status. Slight parameter deviation will directly result in weak overlapping coverage and unstable color stacking. This article summarizes seven practical, production-oriented measures to effectively improve the ink overlapping rate and enhance overall printing uniformity.

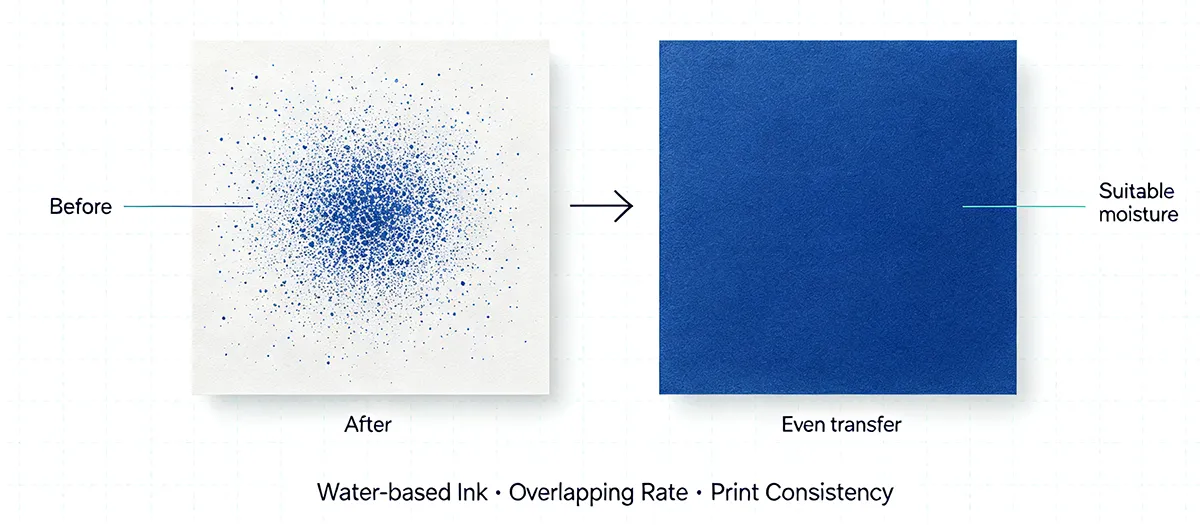

Several Simple Measures to Improve the Overlapping Rate of Water-based ink

1. Stabilize Ink Viscosity to Optimal Printing Range

Viscosity is the core factor affecting water-based ink fluidity and transfer performance. Excessively high viscosity causes poor leveling, uneven spreading and insufficient overlapping. Too low viscosity leads to excessive ink bleeding, thin color stacking and reduced hiding power. Printers should calibrate the working viscosity strictly according to ink supplier standards and maintain stable viscosity during long runs to ensure uniform ink laydown and consistent overlapping effect.

2. Adopt Optimized and Stable Ink Formulation

Ink overlapping performance depends heavily on resin binding force, pigment dispersion uniformity and wetting additives. Ordinary generic water-based inks often suffer from poor pigment fineness and unstable leveling, resulting in weak color stacking. Switching to professionally formulated water-based inks with high dispersion, excellent leveling and stable wetting properties can significantly improve multi-layer overlapping uniformity and color saturation.

3. Control Uniform Ink Film Thickness

Uncontrolled ink film thickness directly causes overlapping failure. An ultra-thin ink layer results in insufficient coverage and faint overlapping traces, while an overly thick layer leads to blurring, dot expansion and edge bleeding. By adjusting screen mesh, printing speed and squeegee pressure, operators can form a moderate, flat and uniform ink film to achieve stable and smooth color overlapping.

4. Keep Standard Screen Tension

Unstable screen tension causes fluctuating ink transfer volume during continuous printing. Low tension leads to screen deformation and uneven ink deposition, which seriously damages overlapping consistency. Regular tension inspection and calibration ensure stable screen resilience and uniform ink release, providing a consistent foundation for accurate color overlapping.

5. Fine-Tune Core Printing Parameters

Precise parameter matching greatly optimizes ink stacking quality. Adjusting squeegee angle, flood speed, print speed and off-contact distance can balance ink filling, transfer and leveling. Reasonable parameter coordination effectively avoids insufficient ink supply or excessive ink accumulation, significantly improving the flatness and density of overlapping areas.

6. Select Matched Screen Mesh Count

Different mesh counts determine ink loading capacity and fineness. A properly matched mesh structure ensures accurate ink transfer, prevents insufficient ink volume or rough ink laydown, and optimizes the overall overlapping effect. Fine patterns require higher mesh counts for delicate overlapping control, while solid-color fields adopt medium mesh to ensure sufficient ink deposition and uniform stacking.

7. Implement Standard Equipment Maintenance

Residual ink buildup, screen blockage and squeegee wear will destroy ink transfer stability. Regular cleaning of screens, squeegees and ink circulation systems guarantees smooth ink flow and consistent transfer volume. Stable equipment status eliminates mechanical errors and ensures long-term uniform overlapping performance in mass production.

Conclusion

Improving the overlapping rate of water-based inks does not rely on random operational adjustments, but on standardized viscosity control, matched ink formulation, precise parameter tuning and stable equipment maintenance. Scientific process matching can completely solve common defects such as uneven overlapping, weak color stacking and mottled printing, greatly improving finished print quality and batch stability.
