Dry & Cure Right,
Every Time.
Incomplete drying or under-cured UV ink leads to smearing, blocking, poor scratch resistance and failed lamination. StarColor provides systematic diagnosis β from dryer profiling to ink formulation adjustment β for water-based and UV systems.
PositionοΌHOME > Solutions > Drying & Curing Issues
Common drying & curing failures and their impact
Ink smears / offsetting
Wet ink transfers to backside or guide rollers. Obvious on rewinds and slitting.
Blocking in roll or stack
Printed layers stick together, tearing ink film or substrate.
Poor solvent / MEK resistance
Low crosslinking density leads to ink rub-off and chemical attack in end-use.
π¬ Root cause diagnosis: drying vs. curing
π‘οΈ Drying (water/solvent based)
- Insufficient hot air flow or temperature
- High printing speed vs. dryer length
- High humidity / low evaporation rate
- Too much ink film thickness (high anilox volume)

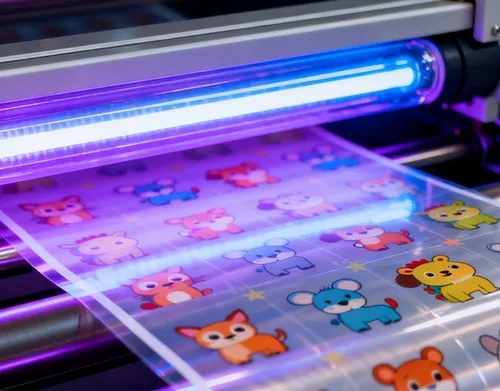

π‘ Curing (UV / EB)
- UV lamp aging / low output (mW/cmΒ²)
- Wrong wavelength or reflector deterioration
- Oxygen inhibition (nitrogen inerting missing)
- Ink photoinitiator mismatch with lamp spectrum
βοΈ Process & substrate
- Substrate absorbs or cools ink too fast
- Ink formulated for different substrate type
- Poorly maintained dryer nozzles / air knives
β¬οΈ Free on-site dryer efficiency measurement and UV intensity mapping available.
β StarColor drying & curing optimized ink systems
Whether you run water-based flexo, gravure or UV flexo, our chemistry is tailored to your drying/curing hardware and substrate. Below is a quick reference for typical applications.
| Ink system | Recommended Series | Drying / Curing features |
|---|---|---|
| Water-based flexo (films) | SC2000 (WB) | Fast evaporating co-solvents, low surface tension, 70Β°C air temp recommended |
| Water-based flexo (paper) | SC1000 (WB) | Penetration + evaporation, no fibre raise, 60Β°C air temp |
| UV flexo (food packaging) | UV7000 series | Low-migration photoinitiators, high cure speed, 200-400 m/min |
| UV offset / screen | UV7200 series | High reactivity, low oxygen inhibition, gloss & matt options |
| UV inkjet (variable data) | UV7900 series | LED-curable, low heat, pinning + final cure profile |
π Key tests for drying & curing issues
π§ͺ MEK double rubs
ASTM D4752 β measures cure/crosslink density. Low rubs (<50) indicates under-cure. Target >100 for films, >200 for overprint varnishes.
π Surface hardness (pencil)
ASTM D3363 β evaluates film hardness after cure. Soft films indicate incomplete polymerization.
π¨ Solvent retention (GC)
Headspace GC measures residual solvents in water-based inks. High residual = drying inefficiency.
π We offer free lab testing for your samples β including solvent retention, MEK rubs and UV cure profiling.
π Case Study: UV Flexo Label Converter β Smearing & Blocking
The Challenge
A label converter in Dubai, UAE experienced 20% waste due to ink smearing on rewind and blocking in stacks. The issue had worsened over several months, with press adjustments β speed reduction, pressure changes β failing to resolve it. Seasonal summer temperatures (40Β°C+) were exacerbating the problem.
The Diagnosis
StarColor's onsite audit identified three root causes:
- UV lamp degradation β Output had dropped to 180 mW/cmΒ² (required 280 mW/cmΒ²) due to lamp aging and contaminated reflectors
- Oxygen inhibition β Running in open air on PE films prevented complete surface cure
- Ink mismatch β Standard photoinitiator package was insufficient for the reduced UV output and oxygen-rich environment
The Solution
StarColor implemented three corrective actions:
| Action | Benefit |
|---|---|
| Replaced UV lamps & reflectors | Restored output to 280 mW/cmΒ² |
| Installed nitrogen inerting | Eliminated oxygen inhibition |
| Switched to UV-LM series | Optimized photoinitiator package for high-speed cure |
The Results
| Metric | Before | After |
|---|---|---|
| MEK double rubs | 35 | 210 |
| Waste rate | 20% | <1.5% |
| Line speed | 120 m/min | 144 m/min (+20%) |
Business Impact:
β
Annual savings: $200,000+ from waste reduction and efficiency gains
β
Zero customer complaints since implementation
β
UV-LM low-migration formulation met GCC and EU food packaging regulations
"StarColor measured everything, found the root cause, and fixed it. Our waste is now below 1.5%, and we're running faster than ever."
β Production Director
π Drying & curing best practices checklist
Use this quick checklist to identify the root cause before you call a specialist:
- Measure dryer inlet/outlet air temperature and air flow rate (m/s) β compare with ink TDS recommendation
- Check UV lamp output with a radiometer (mW/cmΒ² or J/cmΒ²) β replace lamps after 1000-1500 hours
- Verify substrate temperature β cold substrates slow water evaporation and UV cure
- Test ink film thickness (anilox volume) β thicker films require more energy
- Run a simple "thumb twist" test immediately after dryer/curing β tacky = under-cured
- For UV: check oxygen inhibition β use nitrogen inerting for high-speed or thin films
Frequently asked questions β Drying & Curing
β Why does my water-based ink dry too slowly on PE film?
PE films have low surface energy and low porosity. Increase hot air temperature (65β75Β°C) and air flow, reduce ink film thickness, or switch to our SC2000 series with faster evaporation co-solvents.
β My UV ink is cured but still scratches easily β why?
Under-cure due to insufficient UV dose or oxygen inhibition. Check lamp output and consider adding a nitrogen blanket or using our UV-LM series with advanced photoinitiators for surface cure.
β Can StarColor help if my dryer is too short for my line speed?
Yes. We can recommend ink formulations that dry faster at lower temperatures, or add co-solvents that promote rapid evaporation. We also provide dryer extension/upgrade consultation.
β Do you offer on-site curing audits?
Absolutely. Our technical team visits your plant to measure UV output, dryer temperature profiles, and air flow, then provides a detailed report with actionable improvements.
Inks that dry and cure to perfection
Request a free drying/curing audit, sample swatches, or a technical consultation to eliminate smearing, blocking and under-cure.
