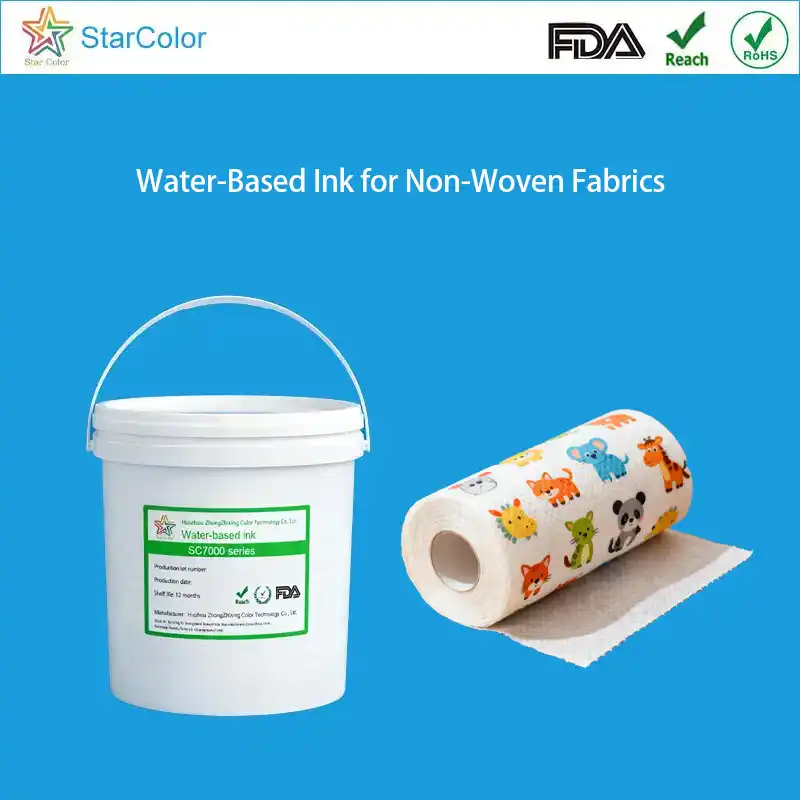

Water-Based Ink for Non-Woven Fabrics
Ink Type
Water-Based Ink
Printing Method
Flexographic Printing
VOC Content
Under 1%
Test Report
FDA,ROHS,REACH SVHC 253
Solid Content
30%--40%
Printing Speed
150-400m / min
Position：Home > Products > Flexo Inks
Product Introduction
Non-Woven Water-Based Ink SC8000 is a premium flexographic solution specifically engineered for the non-woven printing industry. Developed by Star Color, a leading manufacturer committed to sustainability, this ink features an eco-friendly, Low-VOC formula that fully aligns with national environmental standards. Each batch is backed by a CNAS test report, ensuring top-tier safety and compliance for global markets.
- Ingredients: High-grade eco-friendly water-based acrylic resins, premium organic pigments, purified water, and specialized additives.
- Safety Standards: Non-flammable, non-explosive, and non-toxic. Completely odorless and harmless to the human body.
- Global Compliance: Fully meets RoHS, REACH, and FDA international environmental requirements.
- Exceptional Printability: Superior fluidity ensures smooth application and high-definition image clarity.
- Extreme Durability: Delivers powerful adhesion, excellent water resistance, and industry-leading scratch/abrasion resistance.
- High Efficiency: Rapid-drying formula designed for high-speed production lines without compromising gloss or color fastness.
- Stirring: Stir thoroughly before use to maintain consistent ink composition for non-woven printing.
- Viscosity Control: Test viscosity prior to machine application. Recommended on-machine viscosity is 18–28 seconds (Zahn Cup #4) for optimal adaptability.
- Protection: Keep the container sealed when not in use to prevent dust contamination and surface skinning.
- Filtration: If residual ink contains impurities, filter carefully before blending with fresh ink for reuse.
Technical Specifications & Performance
| Product Type | Water-based Ink (Flexographic) |
| Substrate Used | Non-woven fabric |
| Color | Customized according to Pantone color code |
| Viscosity | 20 ± 5s (Zahn Cup #4 / 25°C) |
| Fineness | ≤ 8 μm |
| pH Value | 8.5 – 9.5 |
| Drying Speed | 80– 400 m/min |
| Tinting Strength | 90% – 110% |
| Safety | Non-combustible, Non-toxic |
| Compliance | FDA, RoHS 2.0, REACH 211 |
| Shelf Life | 12 Months (Store in cool, dry conditions) |
| Packaging | 5KG / 20KG / 50KG / 200KG per drum |
| Origin | Guangdong, China |
Eco-Friendly Formula Profile
| serial number | Formulation materials | Use scales | illustrate |
| 1 | acrylic resin | 35% | |
| 2 | water | 10% | For dilution |
| 3 | pigment | 15-35% | |
| 4 | Additives | 1% |
Customization Service Process
From your specific machine parameters to food-grade compliance, we craft the perfect SC6000 ink formula for you.
Requirement Consultation
Specify your substrate, machine speed, and safety standards like FDA or REACH.
Formula & Matching
Lab matches your Pantone/Sample, adjusting viscosity and pH for your high-speed flexo line.
Testing & Verification
Internal tests for adhesion, abrasion resistance, and weatherability.
Trial Run & Feedback
Run customized batches on your line with our remote or on-site technical support.
Production & Delivery
Mass production with batch consistency in 5kg/20kg drums, shipped from Huizhou factory.
Manufacturing Excellence
Strict control from raw materials to delivery, ensuring every drop of ink meets international standards.
Premium Raw Materials
Strict selection of high-quality raw materials
Production
Fully enclosed automated grinding
Quality Control
Batch sampling and testing
Finished Goods
Temperature-controlled storage
Shipping
Efficient logistics and on-time delivery
Technical Guidelines & Operating Instructions
Follow these recommendations to achieve optimal printing results and ink performance.
Core Process Parameters
- Standard Viscosity: 20-30 seconds (Zahn 4# cup)
- pH Control: 8.5 - 9.5
- Substrate Requirement: Surface Tension ≥ 38 dyne
Operating Recommendations
Dilution Ratio:
Suggested water addition is less than 10%, depending on ambient temperature and humidity.
Anilox Roller:
Recommended 400-600 line screen for optimal ink transfer.
Drying Temperature:
Set dryer between 60℃-80℃
Machine Stoppage:
If stopped for more than 30 minutes, flush the ink path thoroughly with water.
Applications & Success Stories
Children's mask printing
mask printing
Airline Seat Headrest Cover
Reusable Paper Towels
Facial Mask
Non woven fabric printing
Notes
During storage, the lid of the barrel must be closed to avoid volatilization of water, causing viscosity to rise or crusting. It must be stirred well before use, please try not to mix with other company products, and the unused products need to be sealed and stored. Please confirm the method and effect before use.
FAQ for SC8000
1. Is the SC8000 ink safe for food packaging applications?
Yes. The SC8000 Non-Woven Water-Based Ink is formulated to meet strict international safety standards, including FDA, RoHS 2.0, and REACH compliance. It is non-toxic, odorless, and contains low VOCs, making it a safe choice for printing on non-woven fabrics used in food-grade packaging and other sensitive applications. Each batch is backed by a CNAS test report to ensure safety.
2. What is the recommended viscosity for high-speed printing?
For optimal adaptability on high-speed flexographic production lines, the recommended on-machine viscosity is 18–28 seconds (measured with a Zahn Cup #4). The standard specification is 20 ± 5s. Please test viscosity prior to application and adjust carefully. Note: Do not over-reduce with water (keep under 10%) to avoid adhesion failure.
3. Can you customize the ink color and formula for my specific machine?
Absolutely. We offer comprehensive customization services. We can match specific Pantone color codes and adjust the formula based on your machine parameters (such as speed and anilox rollers) and substrate requirements. Our process involves consultation, lab matching, and trial runs to ensure the SC8000 ink performs perfectly on your production line.
4. How should I handle the ink if the machine needs to stop for a while?
If the machine is stopped for more than 30 minutes, it is crucial to flush the ink path thoroughly with water. Additionally, always keep the ink container sealed when not in use to prevent surface skinning and dust contamination. If residual ink contains impurities, filter it carefully before blending with fresh ink.
5. What are the storage conditions and shelf life of this product?
The SC8000 ink has a shelf life of 12 months when stored in cool, dry conditions. To maintain the ink's premium quality and fluidity, ensure the storage area is temperature-controlled. Before use, remember to stir the ink thoroughly to maintain a consistent composition.
