Water-Based Flexo Ink for BOPP Films

Name: Water-Based Flexo Ink for BOPP Films
Brand: StarColor Ink
Price: 6.00 USD
Availability: InStock
Rating: 4.8 (10 reviews)

SKU:SC5000-22 ✔ Eco-friendly ✔ Quick-drying ✔ High-performance

Ink Type

Water-Based Ink

Printing Method

Flexographic Printing

VOC Content

Under 1%

Test Report

FDA,ROHS,REACH SVHC 253

Solid Content

30%--40%

Printing Speed

150-400m / min

Send Inquiry →

Position：Home > Products > Flexo Inks

Product Introduction

Star Color’s SC5000 Series is a high-performance, water-based flexographic ink specifically engineered for BOPP (Biaxially Oriented Polypropylene) film printing. Formulated with premium water-soluble acrylic resins, advanced pigments, and purified water, this eco-friendly solution delivers superior print quality while meeting the highest safety and environmental standards.

Unmatched Print Quality & Durability

Achieve exceptional visual impact with inks designed for high-definition flexo and letterpress printing. The SC5000 series offers:

Vibrant Color Performance: High color strength and excellent transparency ensure bright, consistent colors that match Pantone standards.
Superior Definition: Experience clear printing dots and a strong three-dimensional layer effect, enhancing the overall aesthetic of your packaging.
Exceptional Adhesion: Specifically tested for BOPP substrates, providing strong adhesion fastness and excellent resistance to abrasion and scratching.

Optimized for Production Efficiency

Maximize your production line's potential with an ink designed for stability and ease of use:

High-Speed Adaptability: Engineered for rapid drying and smooth transferability, supporting high-speed printing (up to 400m/min) without compromising quality.
Operational Ease: Features excellent leveling properties and printing stability. The ink can often be used directly on the machine with minimal adjustment.
Easy Maintenance: The water-based formula allows for easy cleaning of rollers and equipment, reducing downtime between jobs.

Safety, Sustainability & Cost-Effectiveness

Switch to a greener future without sacrificing performance or budget. Star Color water-based inks are the ideal choice for modern manufacturers:

Eco-Friendly & Non-Toxic: Contains no volatile organic compounds (VOCs) or toxic solvents. It is odorless, non-flammable, and non-explosive, ensuring a safe working environment for your frontline personnel.
Environmental Compliance: Fully aligns with green manufacturing initiatives by eliminating atmospheric pollution.
Cost-Effective: Provides a high-quality printing effect at a competitive cost, optimizing your material expenditure.

Key Advantages

Eco-Friendly Water-Based System – Low VOC emissions and improved workplace safety
Strong Adhesion on BOPP Films – Designed for corona-treated BOPP substrates
Fast Drying Performance – Suitable for medium to high-speed flexo presses
Excellent Color Strength – High color density with consistent tone reproduction
Good Rub & Scratch Resistance – Maintains print integrity during lamination and converting
Stable Press Performance – Supports long press runs with minimal foaming or drying-in issues

Technical Features

Product Specifications: SC5000 Series
Product Name	BOPP flexographic printing ink
Brand	Star Color
Series / Model	SC5000 series / SC500-22
Type	Water-based ink
Color	Customized according to Pantone color code
pH Value	8.5 - 9.5
Fineness	≤ 10um
Printing Method	Flexographic printing, Letterpress printing
Printing Speed	400 meters
Safety	No odor, non-toxic, and non explosive
Origin	Huizhou, Guangdong,China
Packaging Specifications	20kg, 50kg, 100kg, 200kg

Typical Applications

Flexible packaging printing on BOPP films
Food packaging film printing (indirect food contact)
Label and sleeve film printing
Daily chemical and cosmetic packaging films

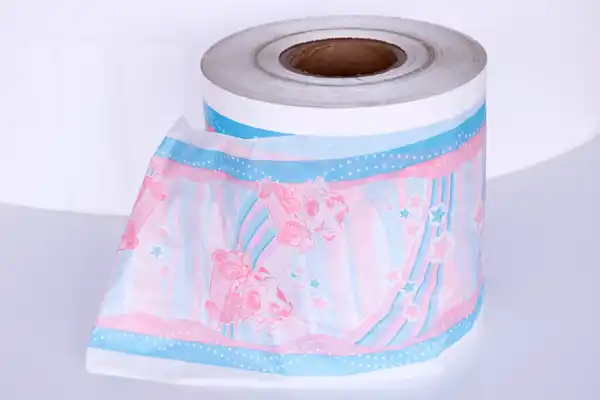

Case: Flexographic printing on bopp film

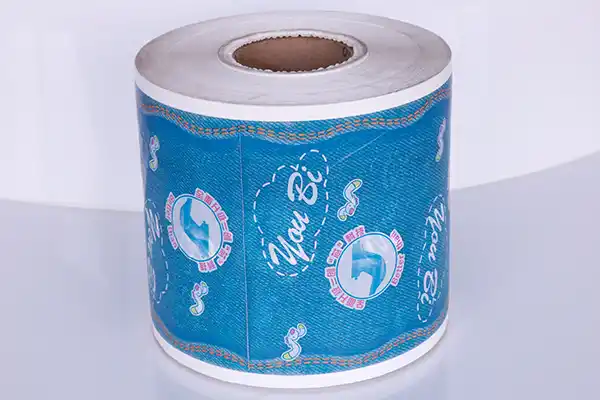

Case: bopp film printing display

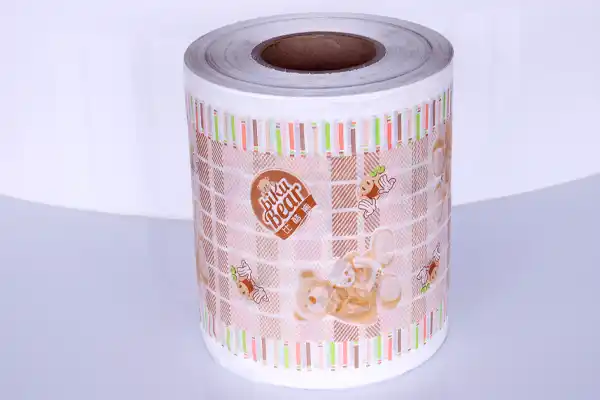

Case: BOPP film printing

Customization Service Process

From your specific machine parameters to food-grade compliance, we craft the perfect SC6000 ink formula for you.

Requirement Consultation

Specify your substrate, machine speed, and safety standards like FDA or REACH.

Formula & Matching

Lab matches your Pantone/Sample, adjusting viscosity and pH for your high-speed flexo line.

Testing & Verification

Internal tests for adhesion, abrasion resistance, and weatherability.

Trial Run & Feedback

Run customized batches on your line with our remote or on-site technical support.

Production & Delivery

Mass production with batch consistency in 5kg/20kg drums, shipped from Huizhou factory.

Manufacturing Excellence

Strict control from raw materials to delivery, ensuring every drop of ink meets international standards.

Premium Raw Materials

Strict selection of high-quality raw materials

Production

Fully enclosed automated grinding

Quality Control

Batch sampling and testing

Finished Goods

Temperature-controlled storage

Shipping

Efficient logistics and on-time delivery

Technical Guidelines & Operating Instructions

Follow these recommendations to achieve optimal printing results and ink performance.

Core Process Parameters

Standard Viscosity: 20-30 seconds (Zahn 4# cup)
pH Control: 8.5 - 9.5
Substrate Requirement: Surface Tension ≥ 38 dyne

Operating Recommendations

Dilution Ratio:

Suggested water addition is less than 10%, depending on ambient temperature and humidity.

Anilox Roller:

Recommended 400-600 line screen for optimal ink transfer.

Drying Temperature:

Set dryer between 60℃-80℃

Machine Stoppage:

If stopped for more than 30 minutes, flush the ink path thoroughly with water.

Important Warning: Do not over-reduce with water. Excessive water addition will cause viscosity breakdown and adhesion failure. For drying speed adjustments, please consult technical support for specialized additives.

FAQ for SC5000-22

Q1. What materials is the SC5000 series ink suitable for printing on?

A: The SC5000 series, including the SC5000-22 model, is specifically formulated as a water-based ink for BOPP (Biaxially Oriented Polypropylene) film. It provides excellent adhesion and fastness on this substrate. It is also suitable for flexographic and letterpress printing methods.

Q2. Is this ink safe for operators and the environment?

A: Yes, absolutely. The SC5000 series is a water-based ink, meaning it does not contain volatile toxic solvents. It is odorless, non-toxic, non-flammable, and non-explosive. This ensures a safe working environment for printing personnel and minimizes atmospheric pollution, aligning with eco-friendly manufacturing practices.

Q3. What kind of print quality can I expect from the SC5000-22 model?

A: You can expect high-quality results. This ink offers high color strength, bright colors, and good transparency. It produces clear printing dots and a strong three-dimensional sense in the print layers. Additionally, it has excellent wear resistance and adhesion, ensuring durability.

Q4. Is the SC5000 series suitable for high-speed printing presses?

A: Yes, it is designed for efficiency. The SC5000 series features a fast drying speed and good printing adaptability, making it suitable for high-speed applications, with a specified printing speed of up to 400 meters. It also has good leveling performance and transferability for stable printing.

Q5. How is the ink supplied, and can I get custom colors?

A: The SC5000 series ink is available in various packaging specifications to suit your needs, including 20kg, 50kg, 100kg, and 200kg containers. Yes, we offer color customization; the ink can be customized according to your Pantone color code to match your specific branding requirements.

Contact Us

Our engineers are ready to help you optimize your ink viscosity, pH control, and adhesion for high-speed flexo presses. Tell us about your substrate, and we'll provide a tailored quote within 24 hours.
